Solid Conveyor Chain

Solid Conveyor Chain

Solid Conveyor Chain

Solid bearing pin conveyor chain has the same dimensions as hollow bearing pin chain but is more robust and thus suitable for more arduous conveyor applications. We are manufacturers snd suppliers of Solid Conveyor Chain as per the customers requirement and suggestions used in various industries. Our company is designed all types of conveyor chain for different specifications and diversified customers. Solid conveyor chain is a internal parts of industries used in moving materials and products through conveyor chains. These solid conveyor chains used in manufacturing industries, we have decades experience in this field and attached with customers.


Features

  • Maintaining smoothly movements
  • Made from stainless steel
  • Transportation of materials and products
  • Used in various industry
  • Latest quality and durable strength
Solid Conveyor Chains

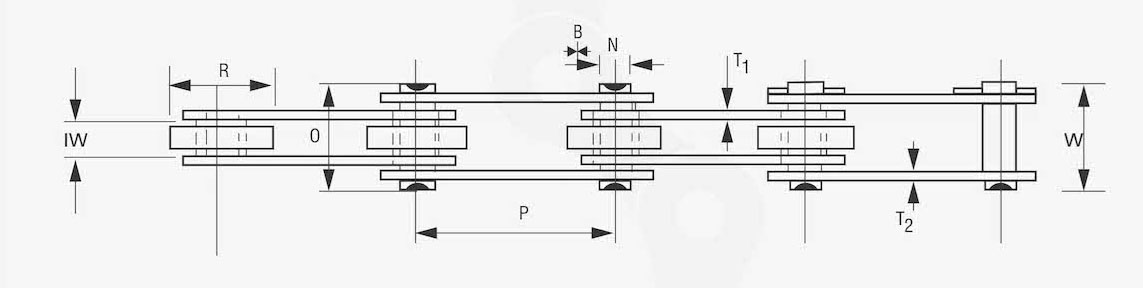

Conveyor Chains Bearing Pin Type


Pitch in Inches(P) Width Between
inner plates(IW) 		Roller Diameter(R) Plates Pin Dia meter(N) Bush Dia (B) Width Over Bearing Pin(O) Breaking Load Flanges Roller Dia Deep Link Chain
Link Width
Standard Roller / Large Roller Width Thickness (LBSF)
(W) Inner (T1) Outer (T2)
1.5" to 4.5" 11.7 12.07 / 25.40 18 1.8 1.8 5.7 9.6 22.22 3000 - 34.5
2" to 6" 12.7 15.75 / 25.4 19.1 2.3 1.8 9.5 12.1 24.6 4500 - -
2" to 6" 15 19.05 / 31.75 25.4 4.00 4.00 13.80 18 38 7500 41.3 51
3" to 9" 19.05 25.40 / 47.62 38.00 5.56 4.00 18.26 23 48.62 15000 60.3 70
4" to 12" 25.40 -/ 66.67 50.80 6.30 5.00 26.92 33 59 30000 85.7 95.5
5" to 18" 38 50.4 / 88.9 61 9 7.6 31.8 38.1 82 45000 114.3/152.4 -
6" to 18" 38 50.4 / 88.9 61 9 7.6 23 38.1 82 60000 114.3/152.4 -
6" to 24" 38 50.4 / 88.9 63.4 13 10 29.4 38.1 94 90000 114.3/152.4 -
